CNC Machining

Overview

I picked up CNC milling and CAM in my junior year. Below are some of the cool things I’ve made.

3-Axis: The Beginning

First parts (softjaws)

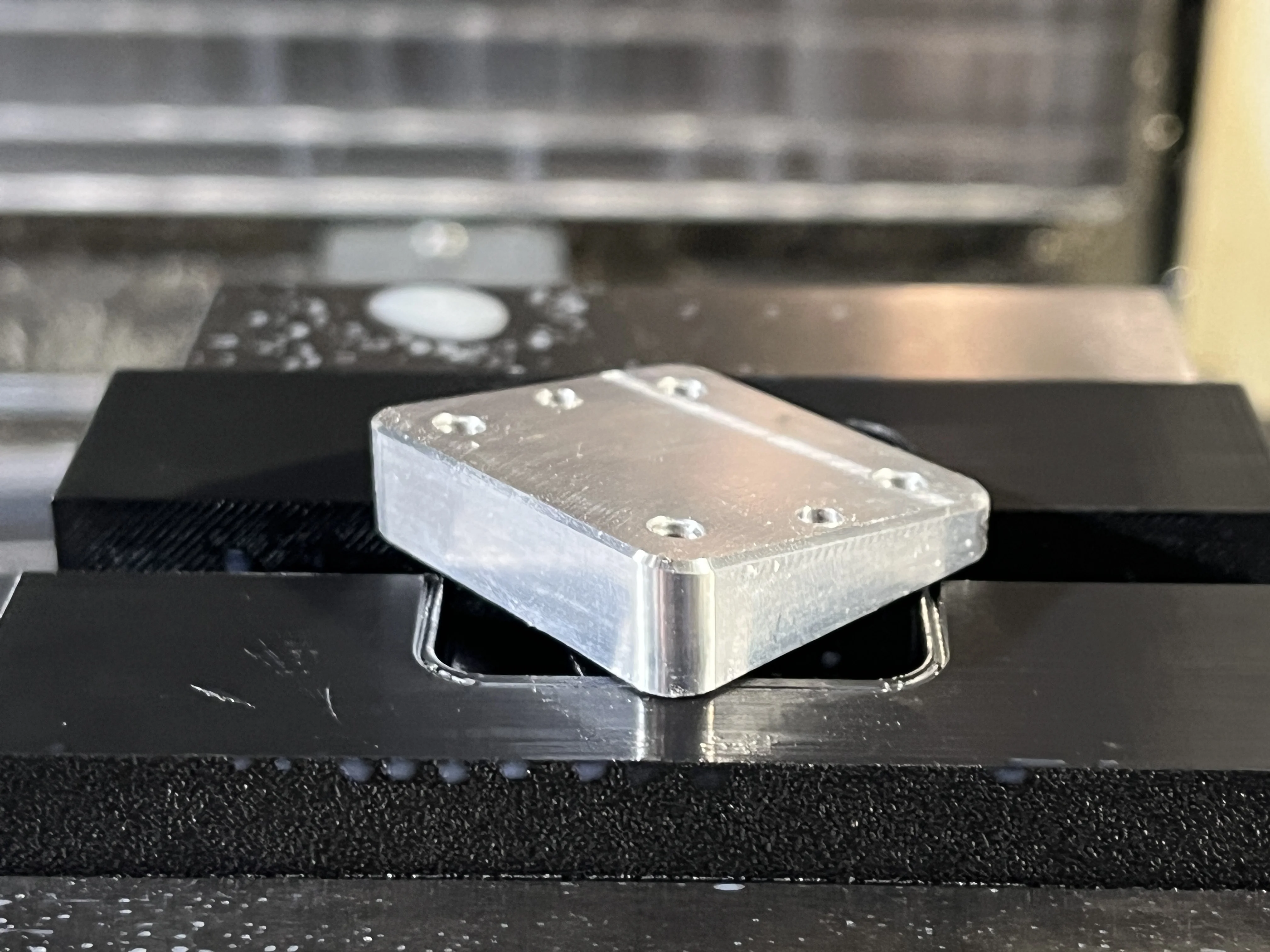

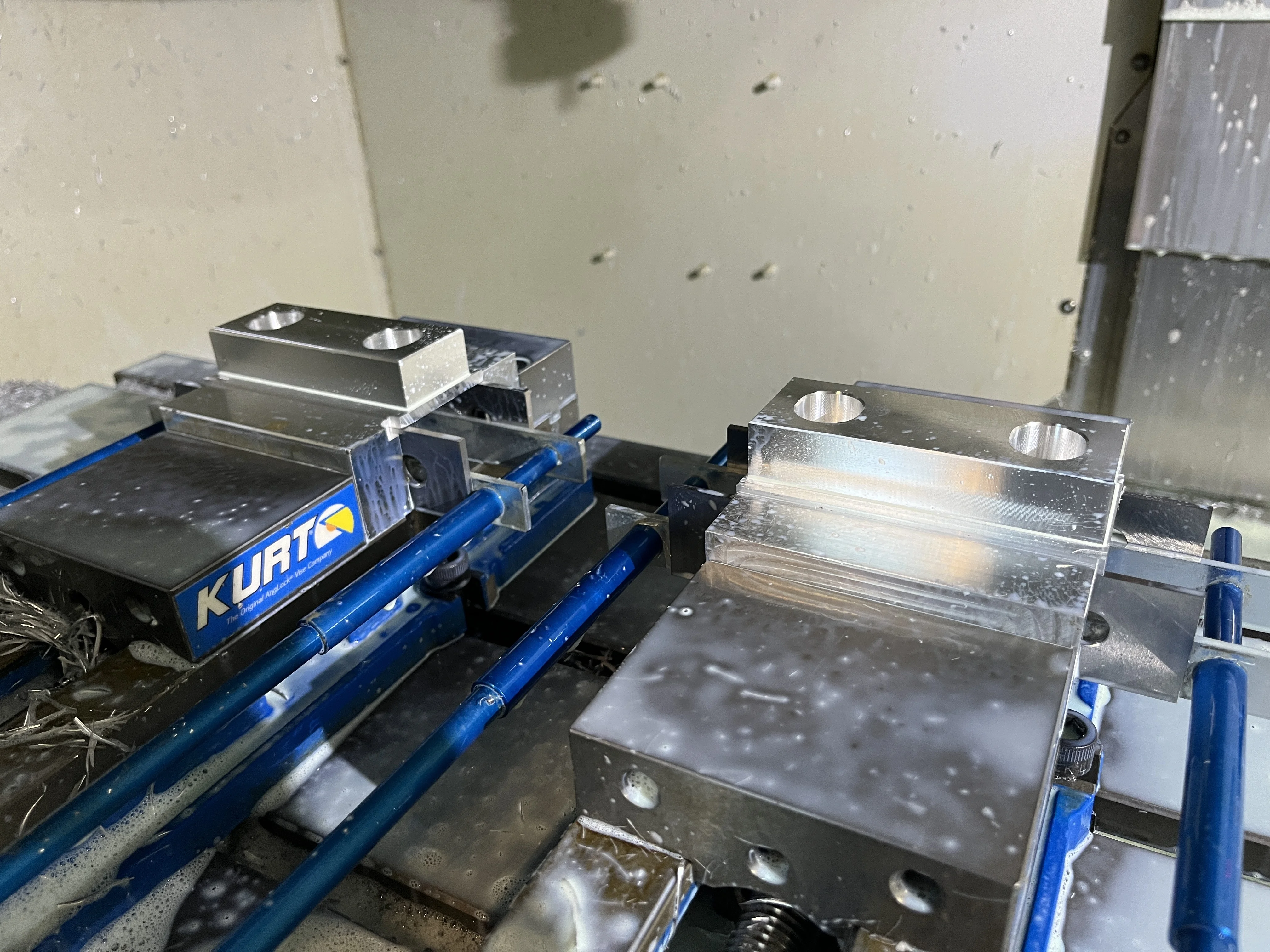

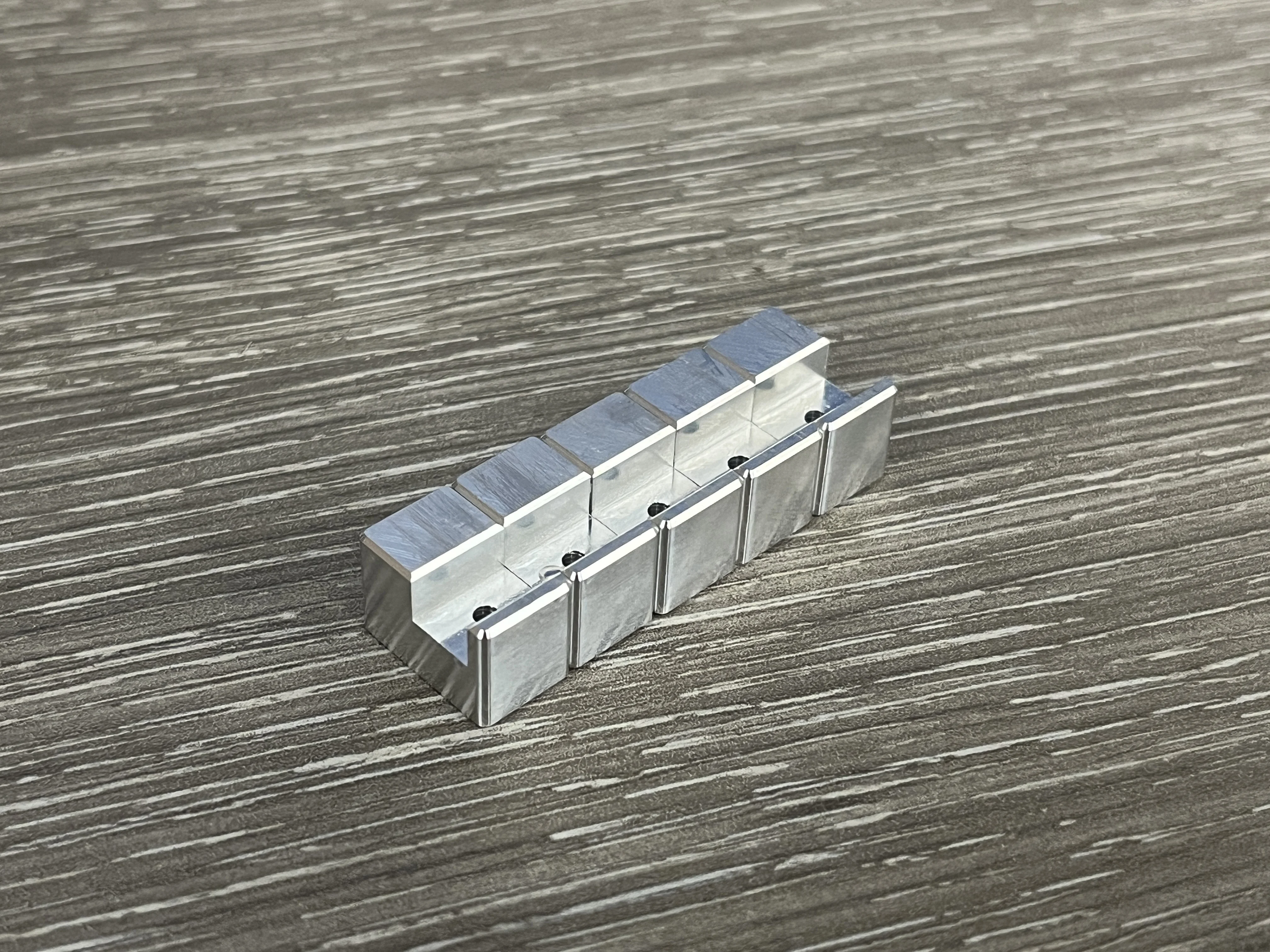

softjaws — Finished softjaws

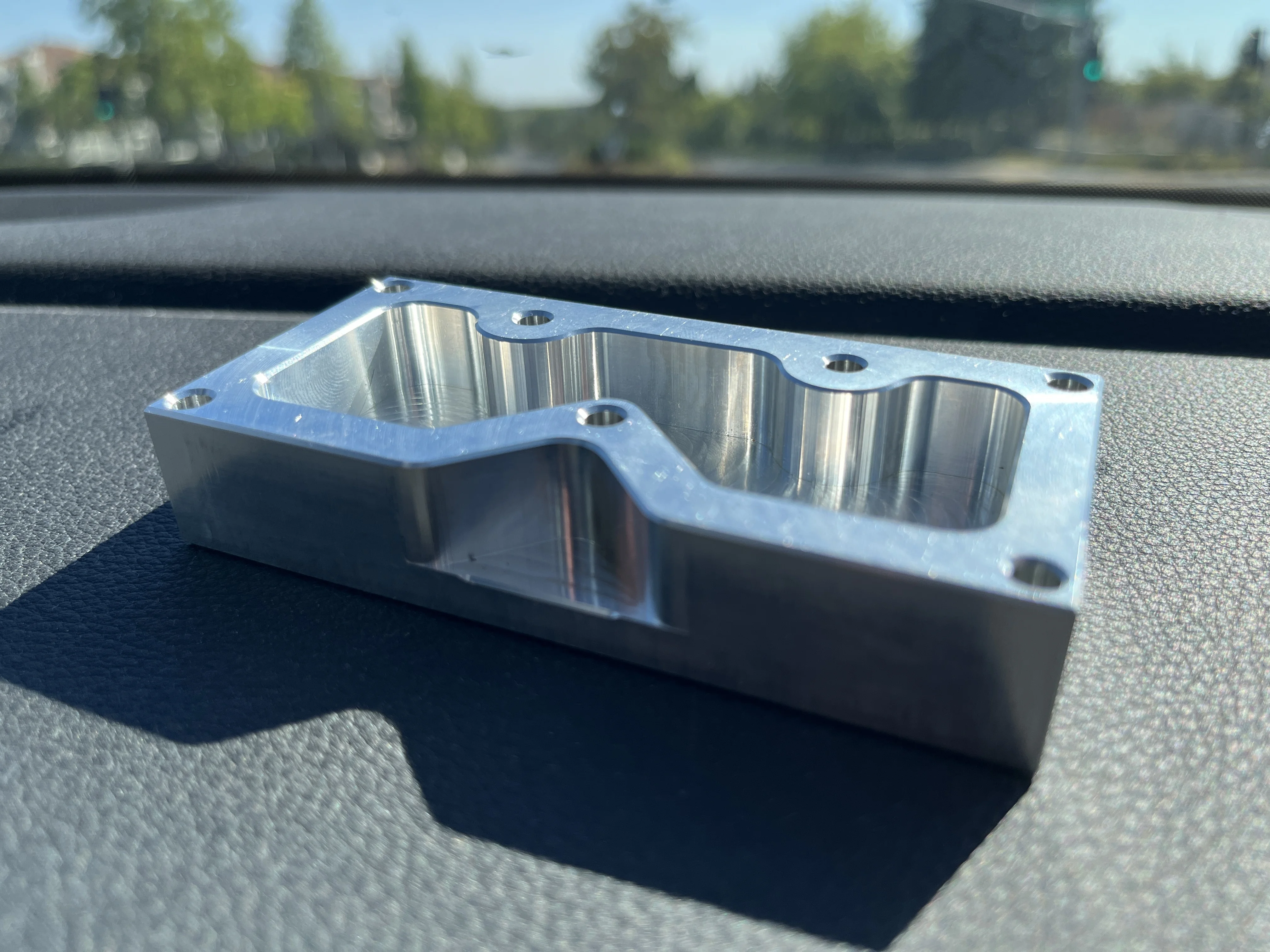

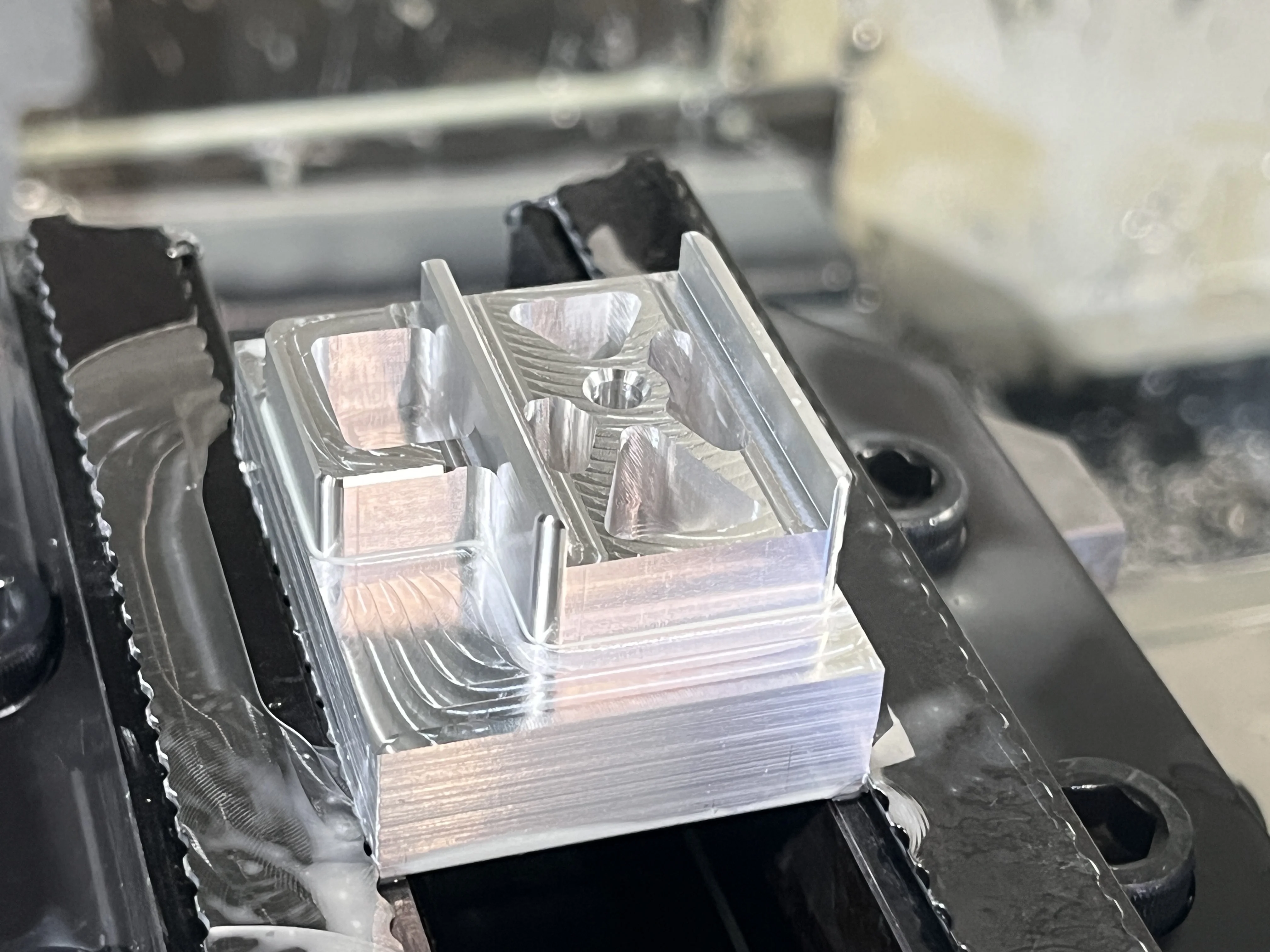

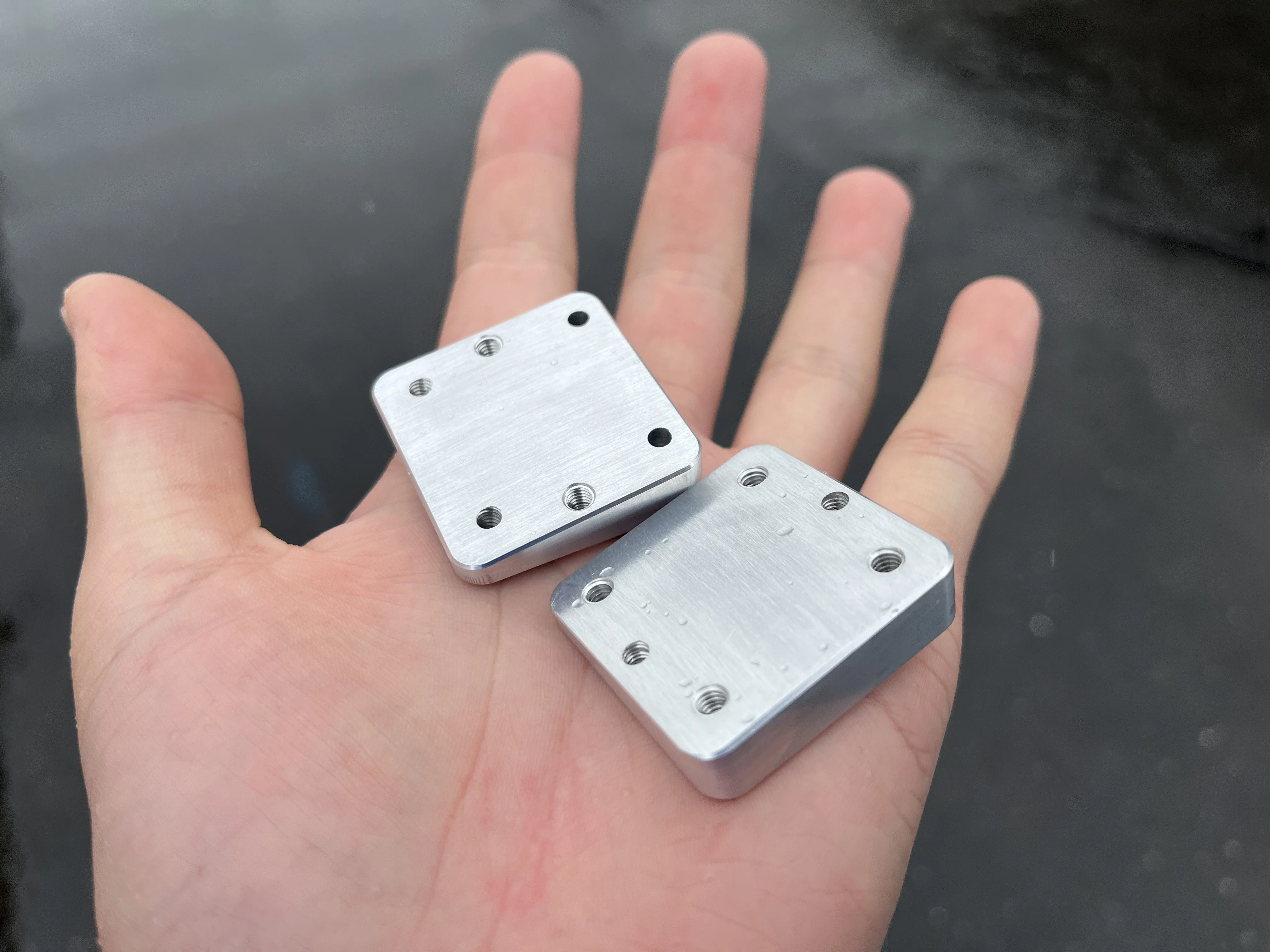

TM1 — TM1 (Titans of CNC Part)

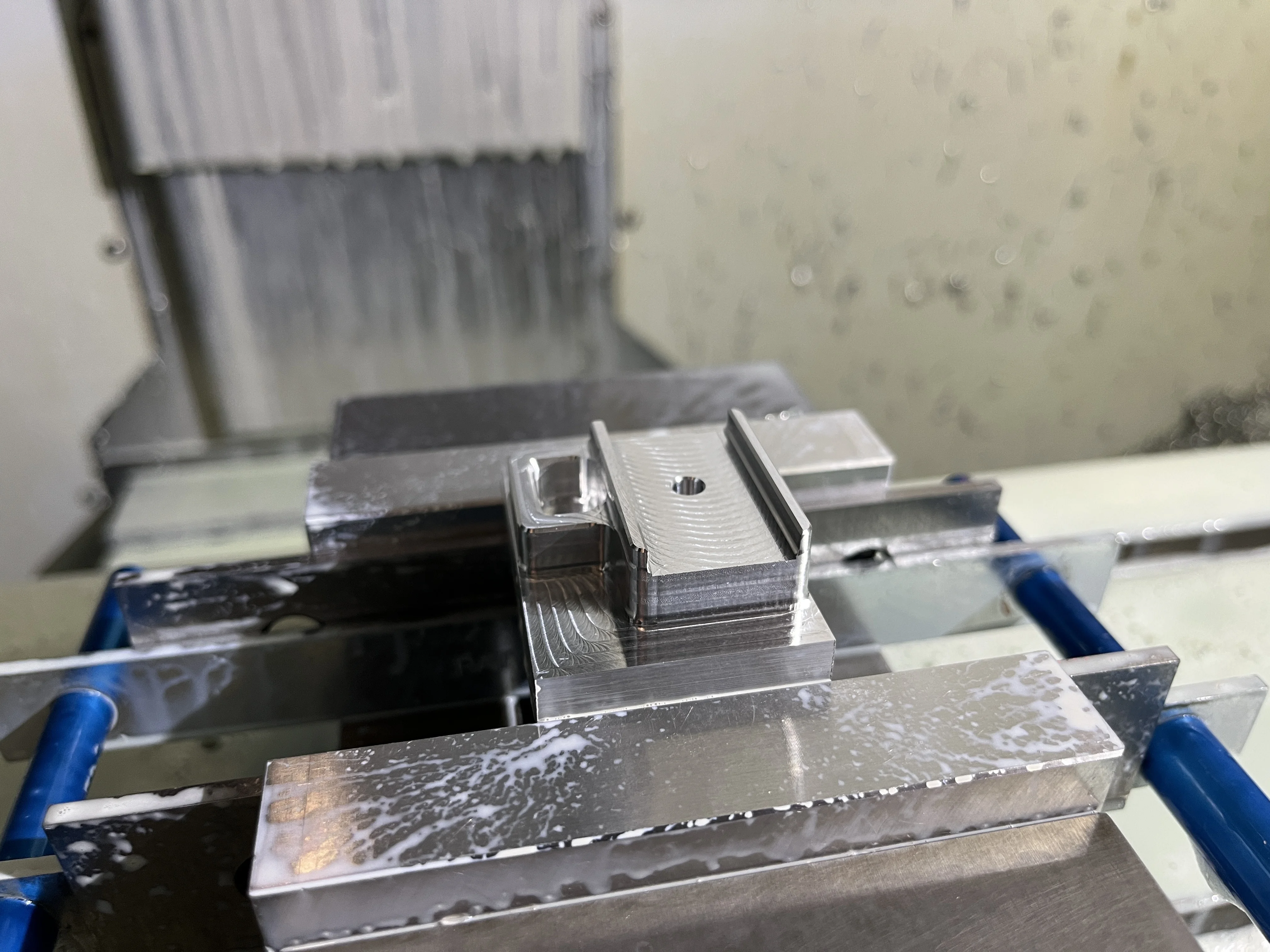

I started milling and learning CAM in the first week of school on a 3-axis Haas Mini Mill and Fusion360.

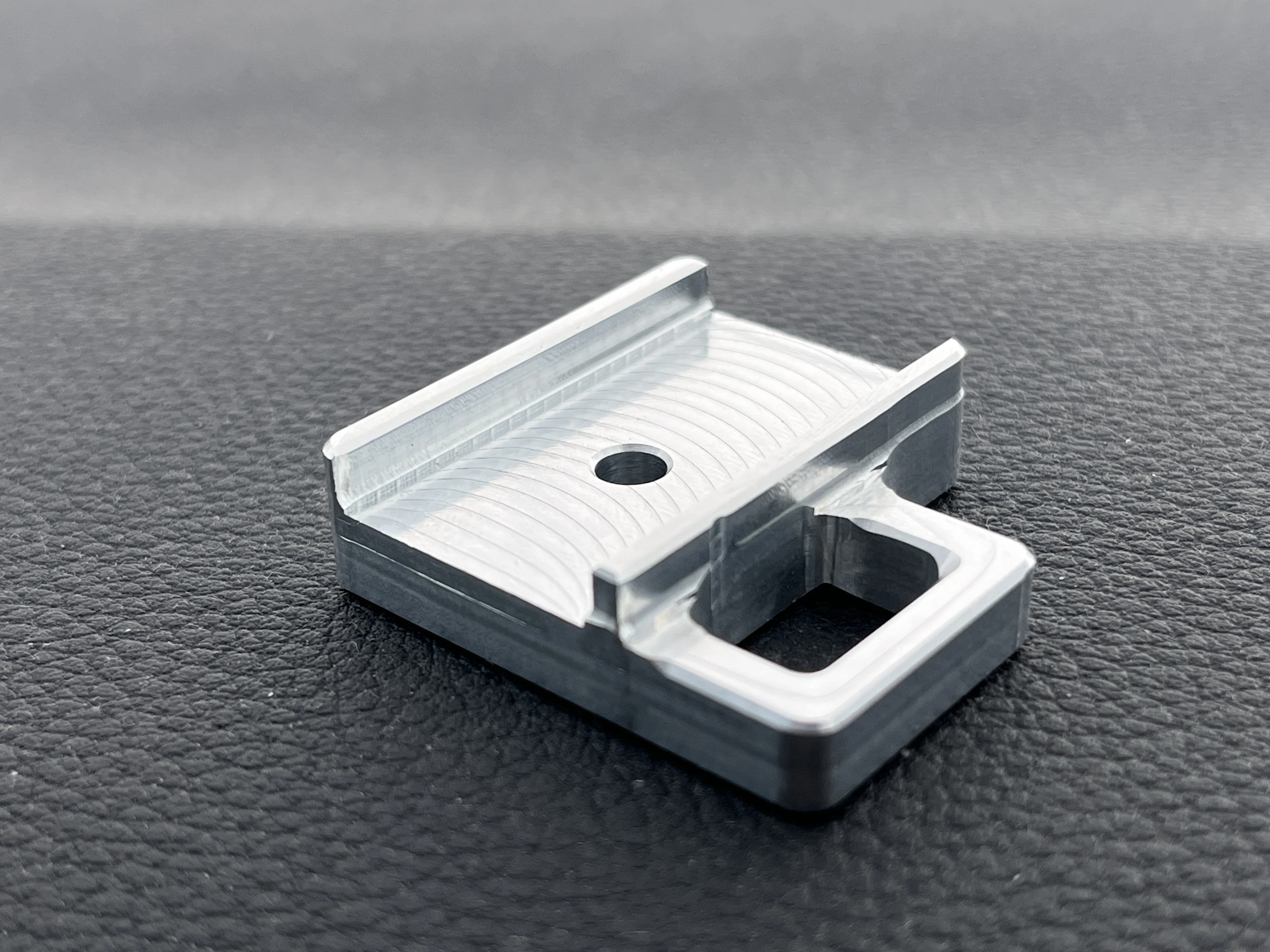

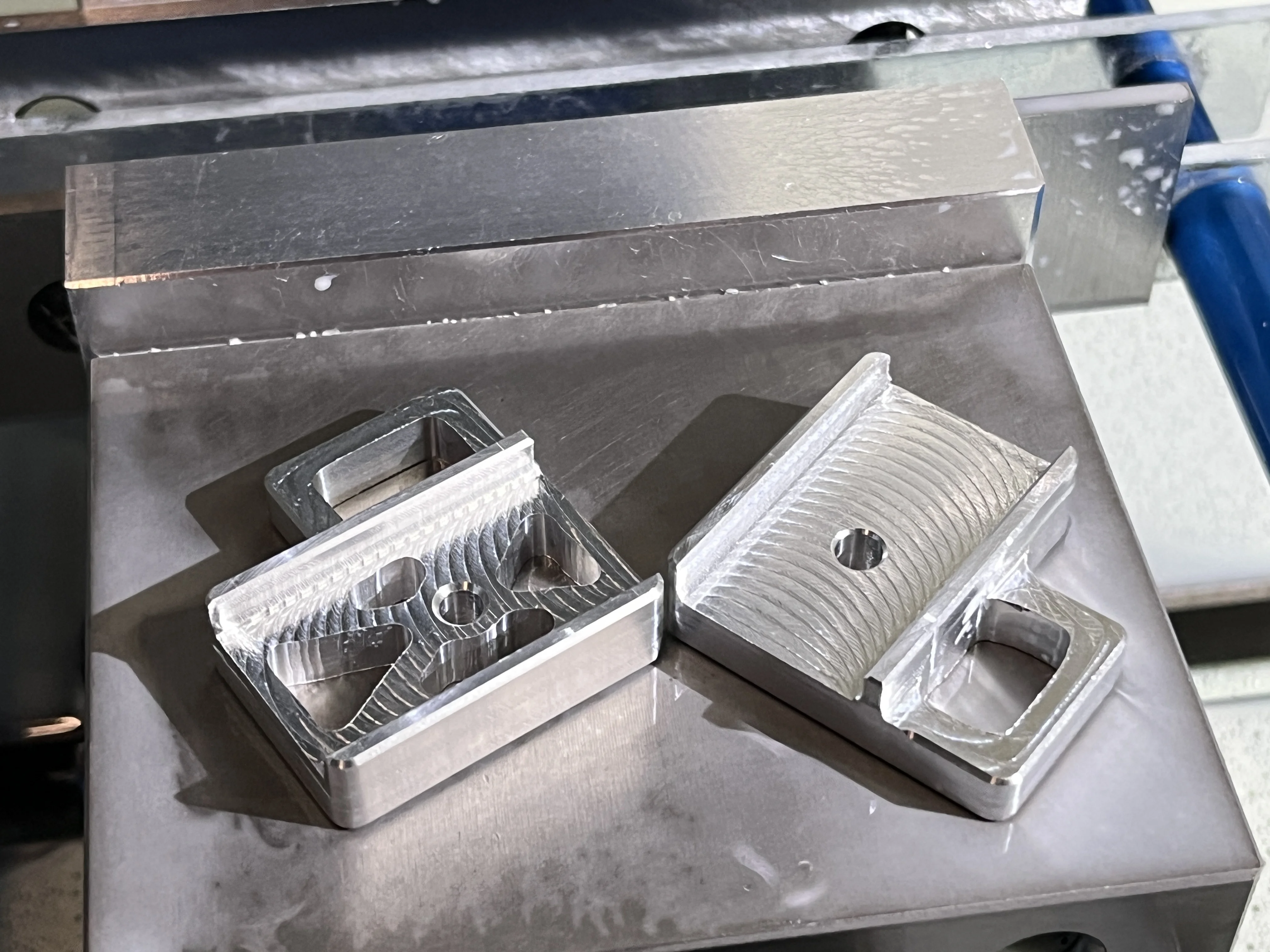

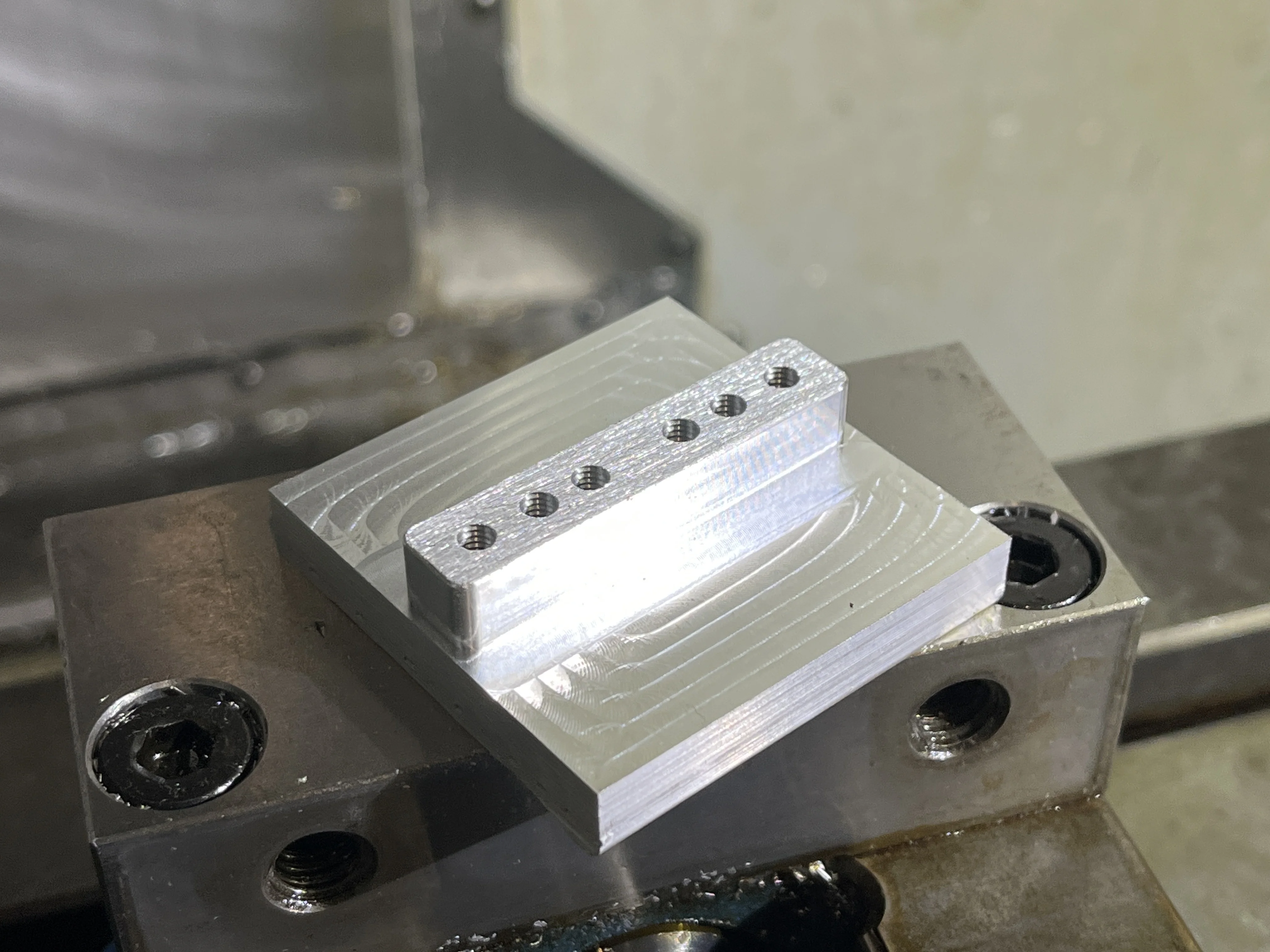

First parts on Haas VF-2

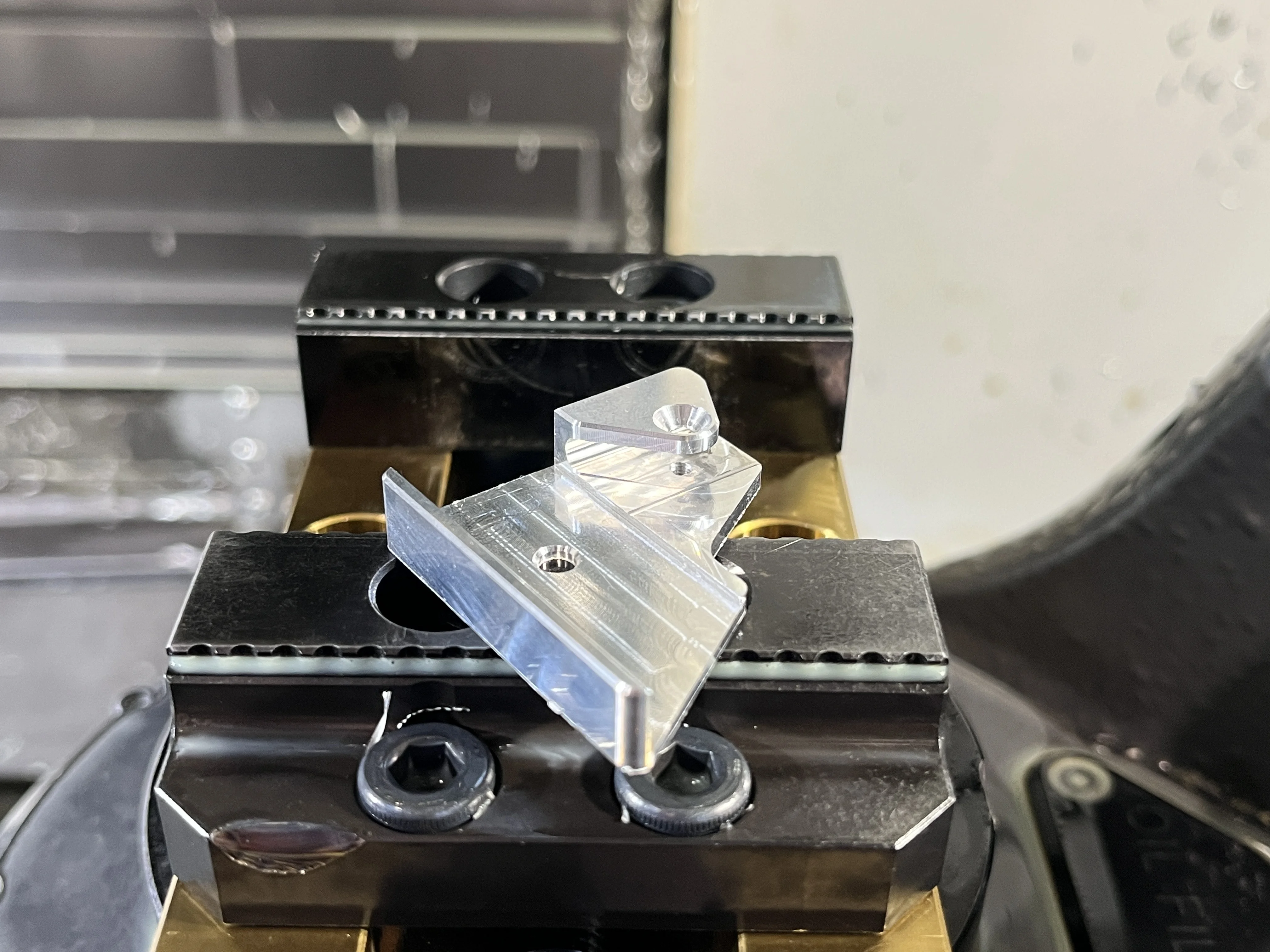

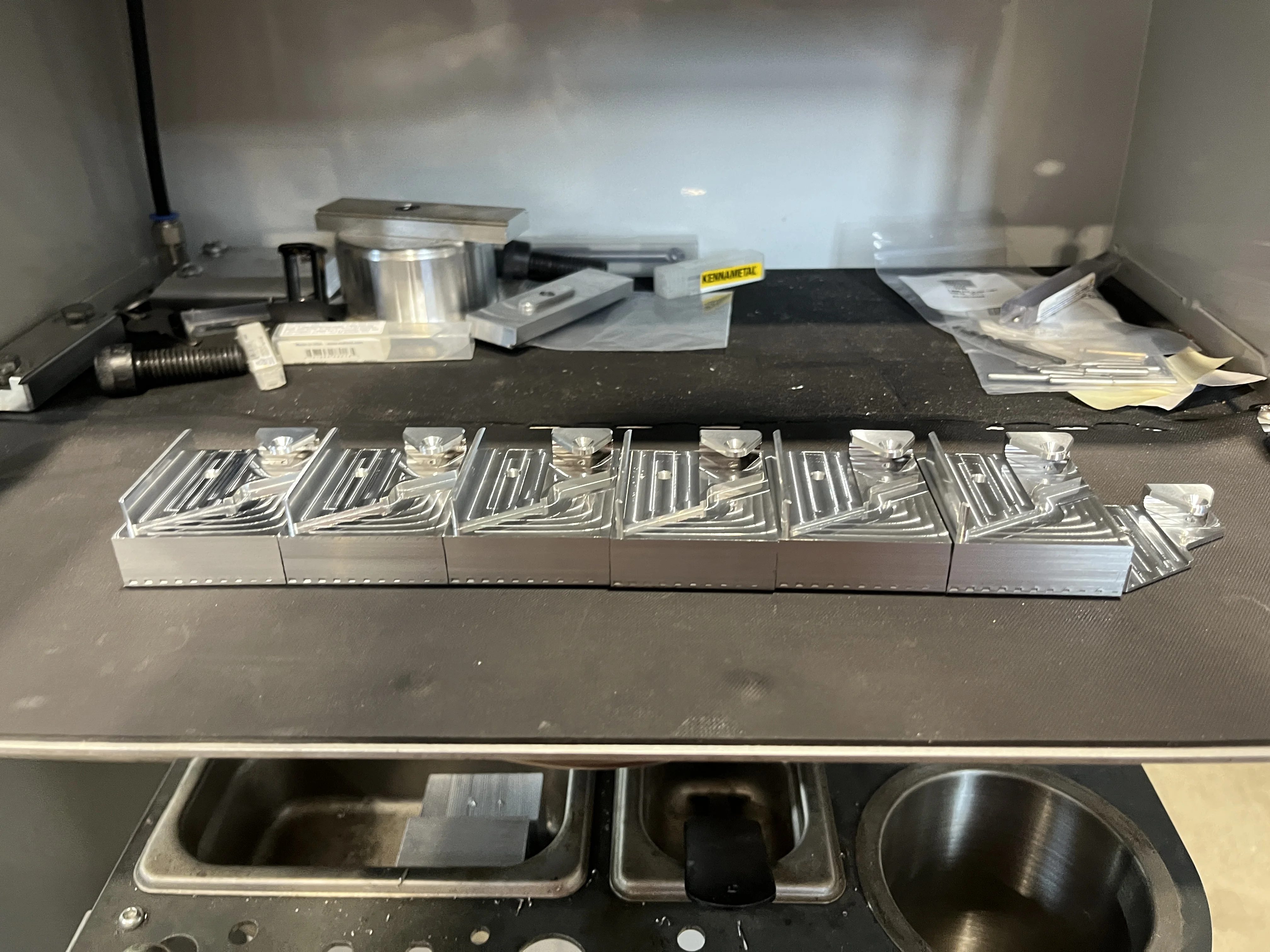

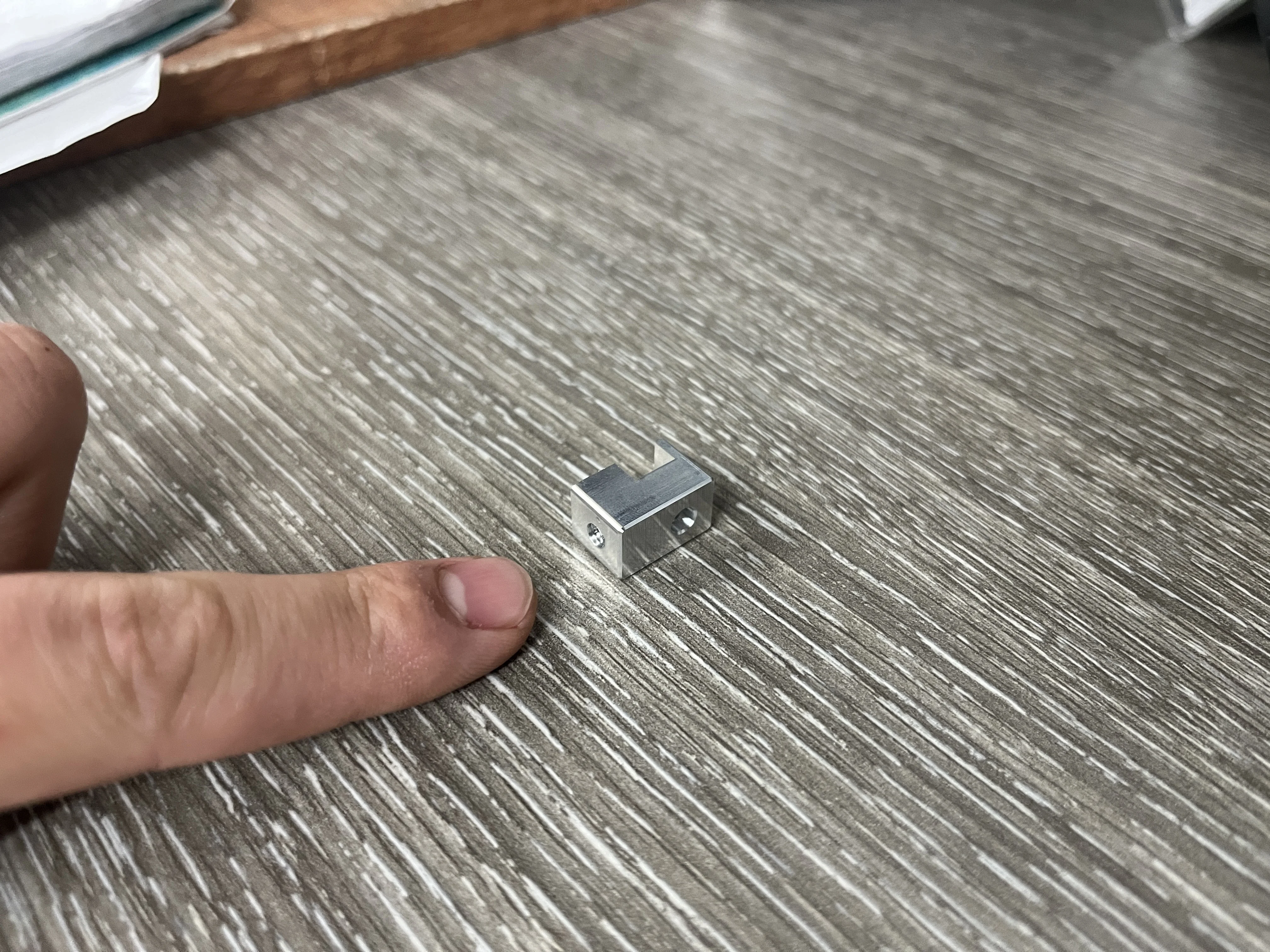

3-Axis and 3+2-Axis Parts for Juice 16236

Automated Probing

Probing in simulation

Probing macro on the Haas Mini Mill

This custom probing macro I developed eliminates the need to manually jog the probe over the part and go through the Haas VPS/probing controls. This automation significantly cuts down on setup times, by ~20%.

5-Axis:

3+2-axis

Full 5-axis

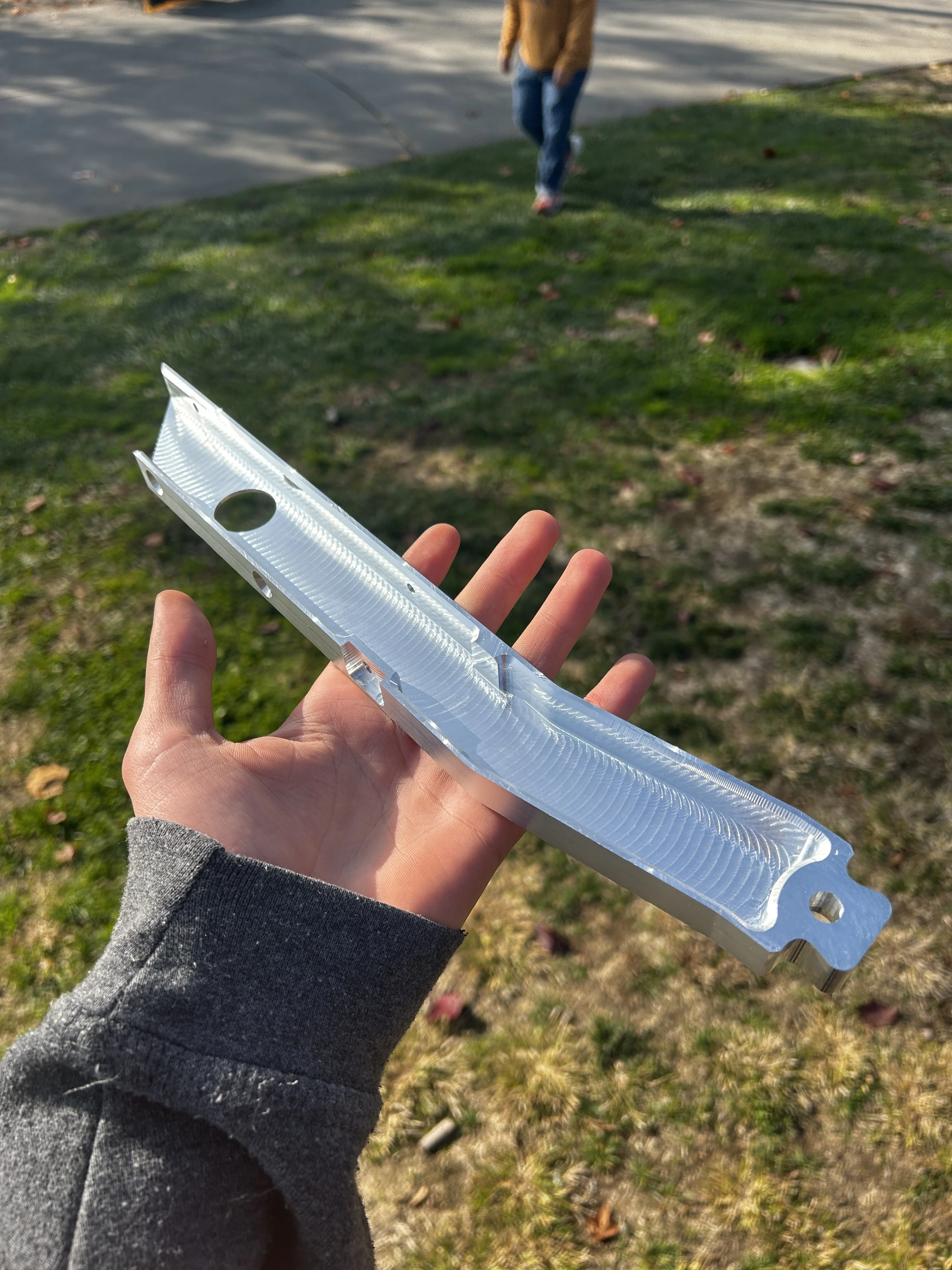

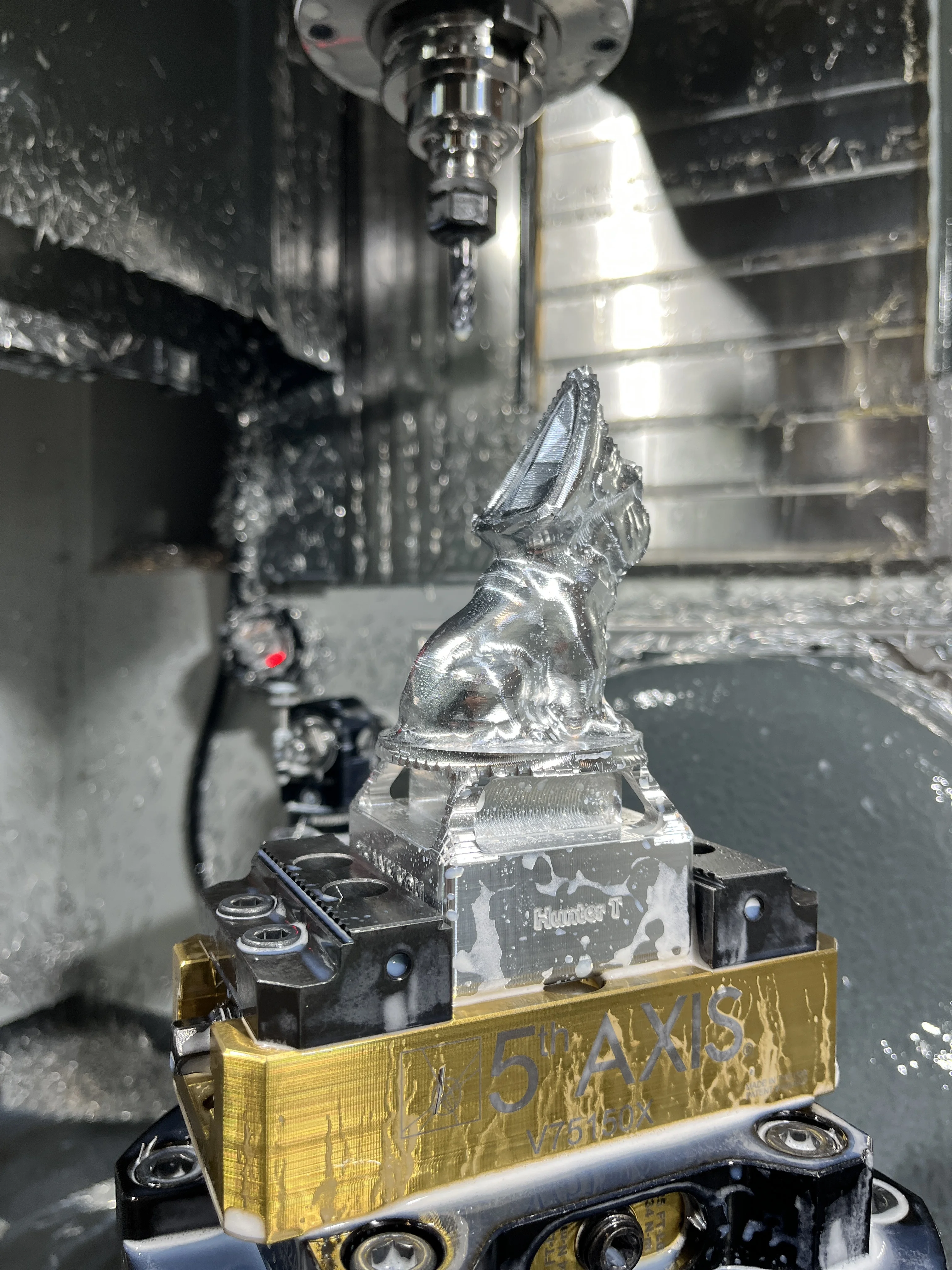

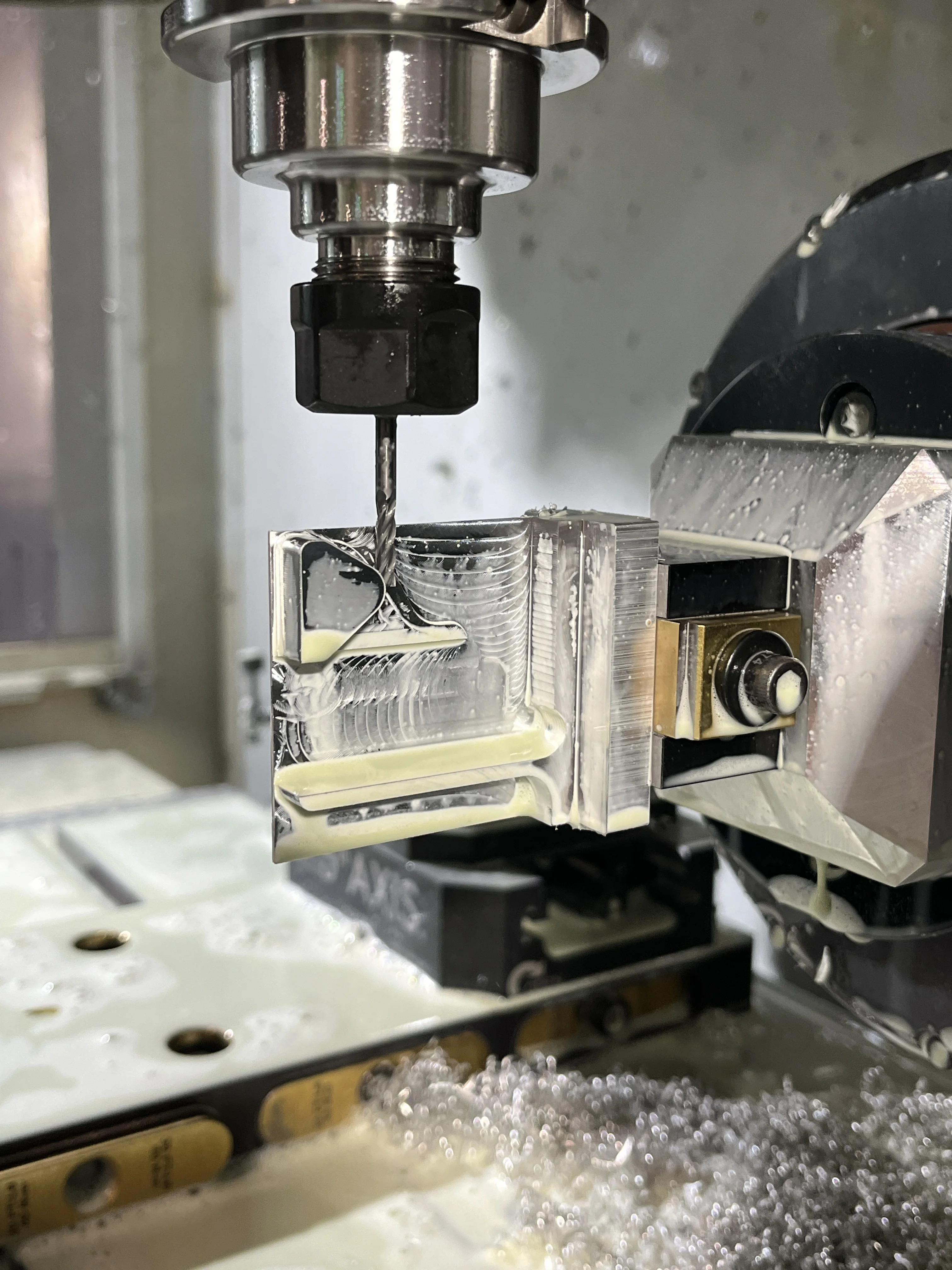

I started learning 5-axis milling two months into my Junior year, beginning with 3+2 on the Haas VF-2 and later progressing to simultaneous 5-axis on the Haas UMC-350HD.

Gallery
